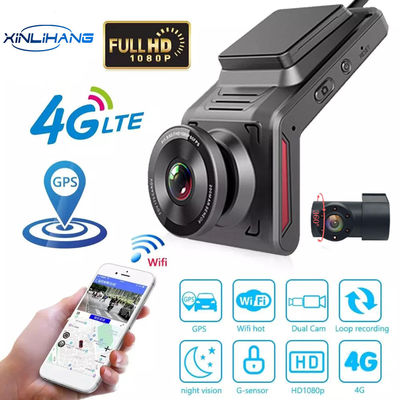

ODM 1080P Hd Rear View Mirror Recorder Blackbox Car Camera 4G

Large Image : ODM 1080P Hd Rear View Mirror Recorder Blackbox Car Camera 4G

Product Details:

Place of Origin:	CN
Brand Name:	XINLIHANG
Certification:	CE
Model Number:	R24

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	bargaining
Packaging Details:	Discussible
Delivery Time:	Discussible
Payment Terms:	T/T
Supply Ability:	Discussible

Contact Now

ODM 1080P Hd Rear View Mirror Recorder Blackbox Car Camera 4G

Description

Product Name:	2.0inch, 4line-SPI Interface, Resolution: 320*240	Main Chip:	SL8521E, Cortex-A53, Dual Core, 1.3Ghz
Front Camera:	C2395 , 4glass Camera Lens , 170 Degree Wide View	Video Resolution:	1920x1080p @25fps; Back Cam: 640x480p @ 15fps
GPS:	GPS+Beidou, Built In GPS Antenna	Wifi:	802.11 B/g/n 2.4Ghz; Support Wifi Hotspot
Remote Monitor:	Support Mobile APP And PC Remote Monitor, And Vehicle Fleet Management	Storage:	256MB
Highlight:	4G hd rear view mirror recorder , ODM hd rear view mirror recorder , 4G blackbox car camera

4G Small Eye Car Dash Camera FHD 1080P Wifi Hotsport Front And Rear Dual Cameras Driving Recorder GPS Mobile APP and PC remote monitor Tracking Parking Monitor

Specifications

Product Parameter
Model number		R 24
Screen		2.0inch, 4line-SPI interface, resolution: 320*240
CPU		SL8521E, Cortex-A53, Dual Core, 1.3Ghz
Storage	RAM	512MB
	ROM	256MB
GPS		GPS+Beidou, built in GPS antenna
OS		Linux
Software upgrade		Upgrade by TF card, OTA online upgrade
Wifi		802.11 b/g/n 2.4Ghz; support wifi hotspot
Remote monitor		Support Mobile APP and PC remote monitor, and vehicle fleet management
GPS track history playback		Support
Remote video liveview		Support remote liveview , voice talk
Video file playback and download		Support check video file by SD card or download the video file into mobile phone to playback.
Network band		3G WCDMA:2100(B1); 4G FDD-LTE: B1/B3
G-Sensor		3-axis G-Sensor
Loop recording		Support
Parking monitor		Support
Front camera		C2395 , 4glass camera lens , 120 degree wide view
Back camera		USB 480P
Video resolution		Front cam : 1920x1080p @25fps; Back cam: 640x480p @ 15fps
Video compression format		H.264
Video format		TS
Standby power consumption		4MAH
		Support WIFI hotspot
Standby power consumption		Build in speaker ( 1.5W/8R speaker)
Hotsport		Build in MIC-Phone Noise Reduction
Input/Output	Speaker	Build in speaker ( 1.5W/8R speaker)
	MIC	Build in MIC-Phone Noise Reduction
	TF card	Support TF card, maximum 128GB(not included)
	USB	Mini USB 2.0
Key button		Power button/Photo button/ Reset key
Reset		Support
Powered by	External power	BMW line power supply 12V; power supply voltage 9V-16V
Temperature and humidity range	Temperature	Usage: -20~+70°C
		Storage: -30~+85°C
	Humidity	Usage: 4%~90%RH
		Storage: 40%RH
Product size		87mm x 71mm x 33mm

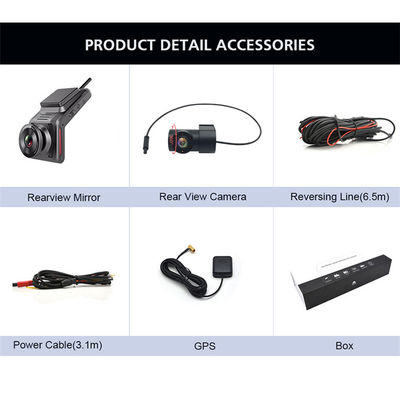

Package		1x dash camera; 1x power cable; 1x rear camera kits , 1x user manual
Mobile APP "CloudDVR" for Android/ iOS
Parking monitor		Support capture front and rear camera video and image
Real-time preview		Support video live preview
Two way voice talk		Suppore press and two way voice talking
GPS track history		Support GPS logger path and video synchronous playback
Monitor and alarm		Support Message / photo alarm if collision happened when car parking
Video download		Support Point-to-point video download to the phone, don't consume internet data
Share video to alburm		Support car life

Description:
This product is a 4G universal car DVR with high-definition 1080P camera.
One-click snapshot, parking monitoring, real-time remote live broadcast, track playback, Wi-Fi point-to-point preview.
4G network sharing, ultra-low power consumption, multi-functional high-definition dashcam.

Feature:
1. Live broadcast function
Condition: The DVR needs to be online and the network connection is normal.
Function introduction: you can remotely view the real-time dynamic picture of the vehicle on your mobile phone. After playing 1 minute, it will prompt whether to save the video on your mobile phone. Voice transmission: During the live broadcast, you can also tap (press and hold to speak), and the DVR will broadcast what you are talking. (Note: Due to the real-time live broadcast function, it depends on the network status. If the network is not good, there may be a freeze or image delay)
2. Remote snapshot function
Applicable scenarios: If you want to know the real-time status of the car, it will upload pictures and vehicle location
information after you click on the snapshot.
3. How to view the video of the memory card in the DVR through mobile phone.
1) To view the video files accessed by the memory card through the mobile phone, the mobile phone must be connected to the hotspot of the recorder；
2) After the hotspot is connected, open the video cloud car APK, click the device information on the recorder interface, and the recorder file can view the corresponding video in the memory card;
3) For important videos, you can long press the video and choose to download to your mobile phone, then you don't need to connect the recorder wifi to view the playback in the mobile phone album.
4. Historical driving track query (check yesterday and previous driving tracks)

Difference between direct WiFi hotspot connection and 4G network connection
1. WIFI connection: the mobile phone is directly connected to the hotspot of the recorder. WIFI direct connection can preview the camera screen and directly access the content of the recorder memory card, and can directly play back or download the video files in the memory card to the mobile phone without consumption , Free of traffic and not restricted by 4G network.
2. 4G network connection: Cannot access the contents of the memory card of the recorder.
The other functions of the operation recorder depend on the 4G network strength of the mobile phone and the recorder, and there is ODM 1080P Hd Rear View Mirror Recorder Blackbox Car Camera 4G 0
